Installing center air duct in the center console
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

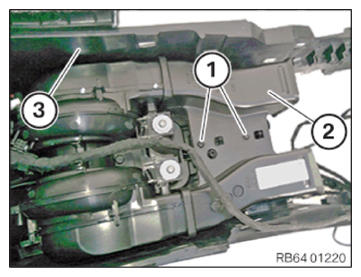

- Replace screws (1).
Parts:
screw
- Install the center air duct (2) in the center console (3) and correctly position.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Air duct to bracket |
| Screw |
tightening torque |
1.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
