Replacing the cylinder head (remounting components)
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

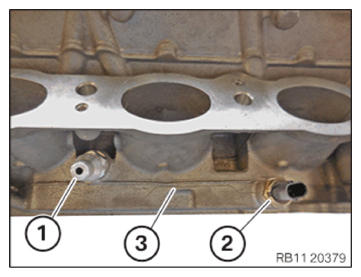

- Release the venting connector (1) at the cylinder head (3).
- Release the coolant temperature sensor (2) at the cylinder head (3).
- Replace the cylinder head (3).
Parts: Cylinder head
- Tighten venting connector (1) on cylinder head (3).
TIGHTENING TORQUE SPECIFICATIONS
| Venting connector/special tool to cylinder head | |
|---|---|
| M10 | Tightening torque 18 Nm |
- Tighten the coolant temperature sensor (2) on the cylinder head (3).
TIGHTENING TORQUE SPECIFICATIONS
| Coolant temperature sensor at cylinder head | |
|---|---|
| Sensor | Tightening torque 18 Nm |
