Installing the upper oil sump section
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.

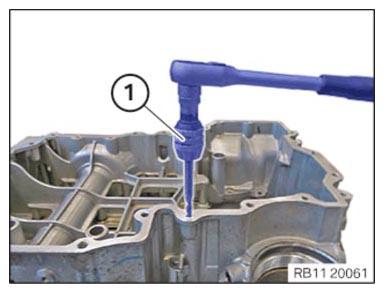

- Clean all threads for attachment with a suitable screw tap M8 (1).NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.- Do not use any metal-cutting tools.

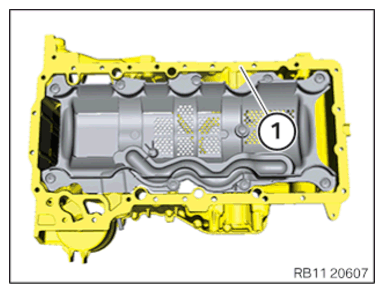

- Clean sealing surface (1).NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.- Do not use any metal-cutting tools.
- Clean sealing surface (1).NOTE: TECHNICAL INFORMATION

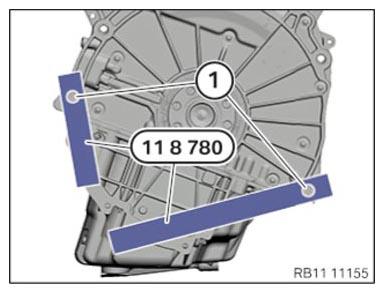

The special tool 11 8 780 is only required when the transmission is removed. - Position special tool 0 496 120 (11 8 780) with transmission bolts (1) in such a way that the oil pan aligns exactly with the engine block.
- If necessary, replace lining sleeves.NOTE: TECHNICAL INFORMATION

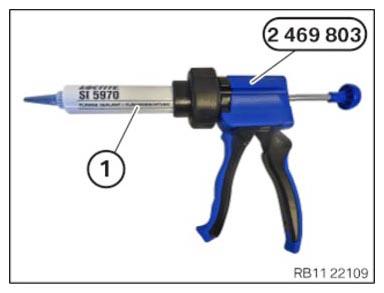

For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) . - Install sealant (1) as shown on the special tool 2 469 803
.SEALING COMPOUND SPECIFICATIONS
Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature 50 ml, Cartridge 83190404517 NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents. - Apply the prescribed amount of sealant to the separation points in the marked area.
Using more than the recommended amount of sealant may result in leaks .
Specified amount of sealing compound
Height 4 mm Diameter 4 mm NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents. - Apply the prescribed amount of sealant to the separation points in the marked area.
Using more than the recommended amount of sealant may result in leakage .
Specified amount of sealing compound

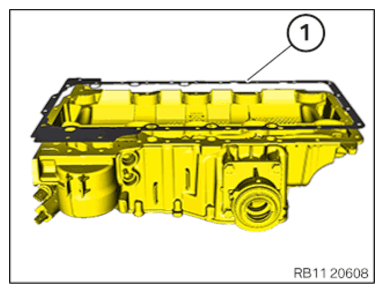

Height 4 mm Diameter 4 mm - Replace the seal (1).
Parts: Gasket
- Position seal (1) on upper oil sump section.NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.

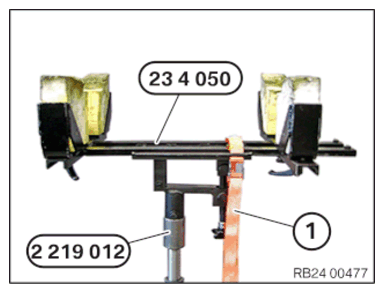

- Position the oil pan on the crankcase using the special tools 2 219 012
and 0 495 498 (23 4 050)
and with the help of an support person.NOTE: TECHNICAL INFORMATION
Microencapsulated screws must be replaced and may not be reused.

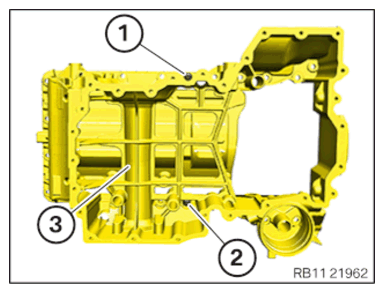

The screw lining must be completed within 10 minutes, as the hardening begins after this time period. Microencapsulated screws must not be retightened. - Position upper oil sump section (3) with the seal on the crankcase.
- Replace screws (1) and (2). Observe screw lengths.
Screws Item numbers (for the installation location, see the overview) M8 x 25 1, 3, 4, 5, 7, 8, 9, 11, 12, 14, 15, 16, 17, 18, 19, 20 M8 x 45 2, 6, 10, 13, 21, 22, 23, 24, 25 - Tighten down screws (1) and (2).TIGHTENING TORQUE SPECIFICATIONS
Initial torque of upper oil sump section M8x25, M8x45

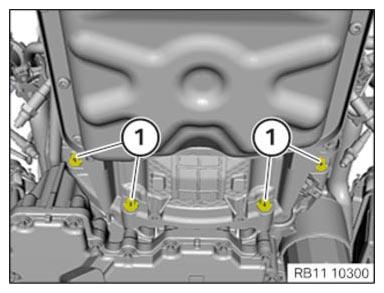

Replace screws.tightening torque 5 Nm NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Tighten transmission screws (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission to engine M8 tightening torque 19 Nm M10 tightening torque 38 Nm - Remove special tools 2 219 012
and 0 495 498 (23 4 050)
.NOTE: TECHNICAL INFORMATION
Microencapsulated screws must be replaced and may not be reused.
The screw lining must be completed within 10 minutes, as the hardening begins after this time period. Microencapsulated screws must not be retightened. - Replace screws (3) to (25). Observe screw lengths.
Screws Item numbers (for the installation location, see the overview) M8 x 25 1, 3, 4, 5, 7, 8, 9, 11, 12, 14, 15, 16, 17, 18, 19, 20 M8 x 45 2, 6, 10, 13, 21, 22, 23, 24, 25 NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.

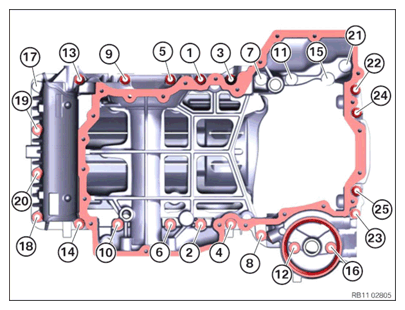

Failure to comply with the regulations can lead to leaks and damage. - Tighten the screws in the sequence (1) to (25).TIGHTENING TORQUE SPECIFICATIONS
Oil sump upper section to crankcase M8x25, M8x45

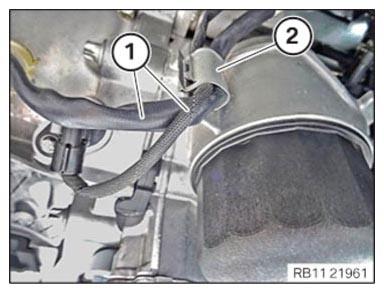

Replace screws.1. Joining torque 27 Nm 2. tightening torque 27 Nm - Secure cable (1) to the clamp (2).
- Secure clamp (arrow).

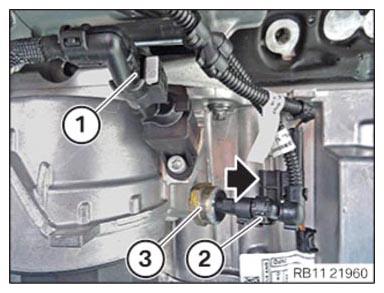

- Install and tighten the oil pressure sensor (3).TIGHTENING TORQUE SPECIFICATIONS
Oil pressure sensor M12x1.5 Tightening torque 15 Nm - Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

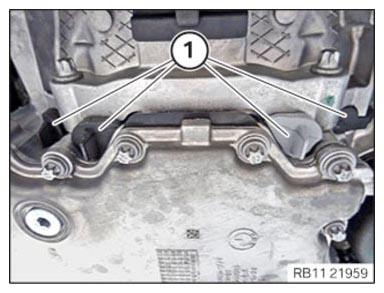

- Install rubber plugs (1).
