Install air conditioning compressor (engine removed)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

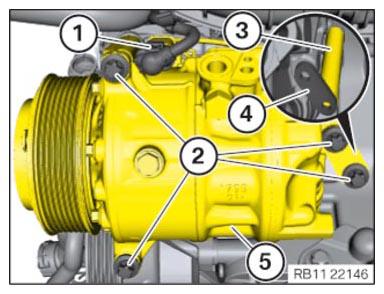

Position the air conditioning compressor (5).
Position the spacer sleeve (3).
Position the lug (4).

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Air conditioning compressor to holder/engine
M8	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1) and lock.

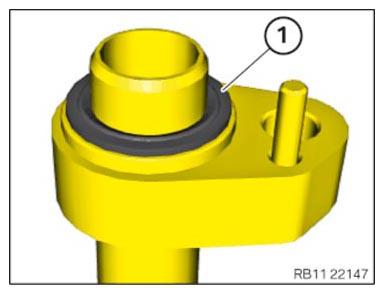

Replace the seals (1) of the suction and pressure line.
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

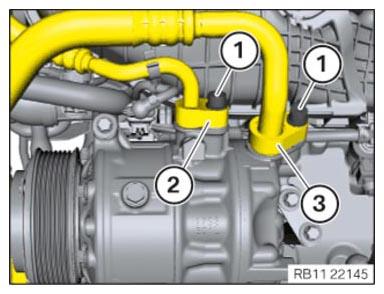

Position the intake pipe (3).
Position the pressure line (2).
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Refrigerant line on air conditioning compressor
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
