Install Valvetronic servomotor, right (cylinder head removed)

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

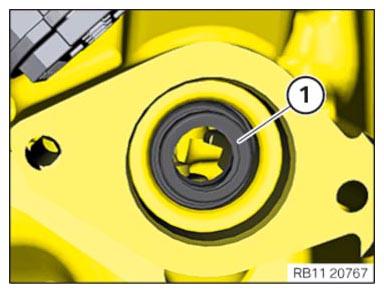

If necessary, lever the radial shaft seal (1) out of the cylinder head using a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.

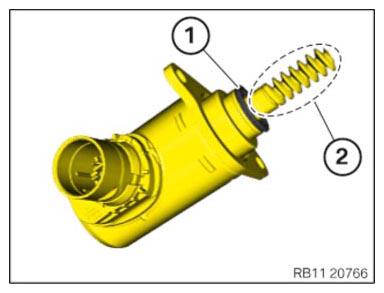

Replace radial shaft seal (1) at front.
Parts: Radial shaft seal
Grease the gearing on the worm drive in area (2) using lubricating grease.
Parts: lubricating grease
CONSUMABLE SPECIFICATIONS

Lubricating grease Longtime PD-1 400 g, Cartridge 83192160340

Courtesy of BMW OF NORTH AMERICA, INC.

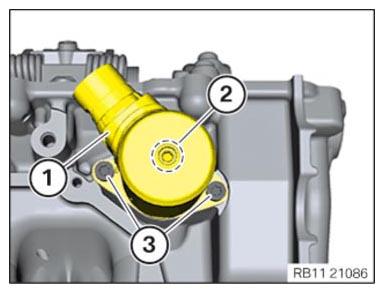

Turn the Valvetronic servomotor (1) evenly with the shaft (2) across the gearing of the worm drive as far as it will go.
Secure screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Valvetronic servomotor on cylinder head
M6x16-8.8	Tightening torque	9.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
