Remove transmission cross-member
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

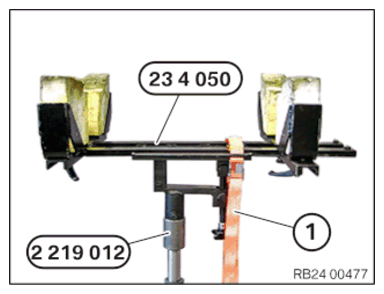

- Support the transmission using special tools 2 219 012
and 0 495 498 (23 4 050)
.
- Secure the transmission with the luggage strap (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

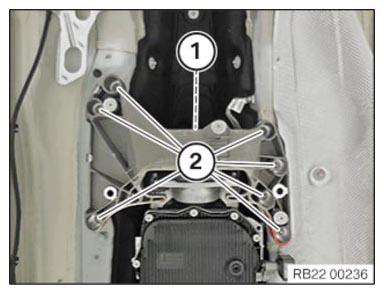

- Loosen screw (1).
- Loosen screws (2).
- Remove the transmission cross member and lower the transmission a little.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
