Install the window frame trim of the front door

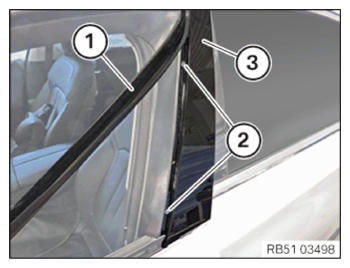

• Insert the window frame trim (3) towards the bottom and attach it to the door frame.
• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Window frame trim to window frame
  screw
  	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Coat the rubber window seal (1) with water prior to installation.
• Carefully insert the rubber window seal (1).

Follow-up work

• Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING THE MIRROR TRIANGLE COVER .
