Installing the rear tension strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
Description is for left component only. Procedure on the right side is identical.

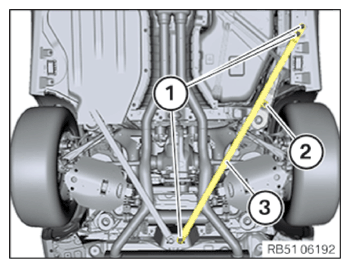

- Install the tension strut (3).
- Tighten the screws (1) and the nut (2).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut on body and holder M12x25 Replace screws. Joining torque 100 Nm Angle of rotation 90° Nut M10 Tightening torque 38 Nm
Follow-up work
- Refer to INSTALLING UNDERSHIELD (TANK COVER) .
