Replacing the dashboard trim

Precondition

• The steering wheel is adjusted downwards all the way back.

Preliminary work

• Refer to ADJUSTING THE STEERING COLUMN POSITION .
• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE CARPET ON THE CENTER CONSOLE ON THE LEFT AND RIGHT SIDES .
• Refer to PARTIALLY REMOVING THE STORAGE COMPARTMENT OF THE CENTER ARMREST .
• Refer to REMOVING THE CENTER CONSOLE .
• Refer to REMOVING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to REMOVING THE KOMBI TRIM .
• Refer to REMOVING RIGHT FOOTWELL TRIM  .
• Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
• Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
• Refer to REMOVING THE TRIM PANEL FOR PEDAL MECHANISM .
• Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
• Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to REMOVING LIGHT OPERATING UNIT .
• Refer to REMOVING THE AUDIO CONTROL UNIT .
• Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
• Refer to REMOVING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to REMOVING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
• Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to REMOVING THE TRIM FOR THE HEAD-UP DISPLAY .
• Refer to REMOVING GLOVE BOX LIGHT .
• Refer to REMOVING INSTRUMENT PANEL TRIM .

Removing the speaker trim at the dashboard

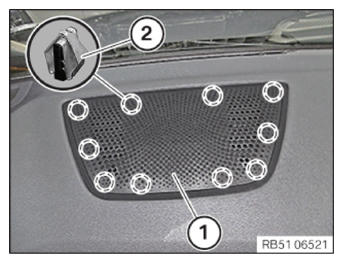

• Lever the speaker trim (1) with the special tool  0 496 569 (00 9 325)  upwards and out of the  clamps (2) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

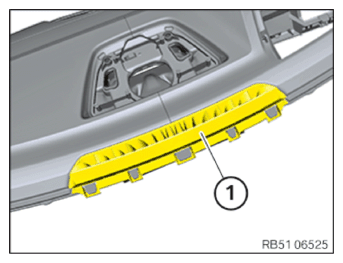

  Removing the defrost outlet

• Pull off the defrost outlet (1) towards the rear from the detents.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Removing the speaker holder on the dashboard

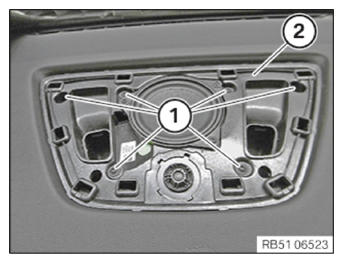

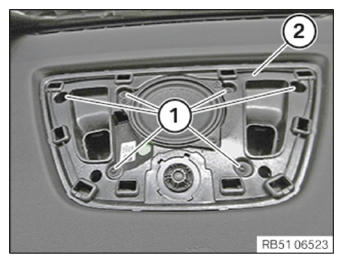

• Loosen screws (1).
• Slightly pull out the speaker holder (2) with the loudspeakers and fold to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

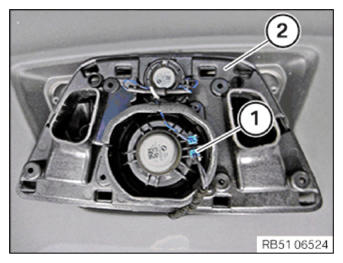

• Unlock plug connection (1) and disconnect.
• Remove the speaker holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Removing front passenger airbag

  WARNING: Pyrotechnic components  .
  Danger! Immobilization period-threatening injuries!

  • All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
  • Replace any damaged part or ones that have been dropped.
  • For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
  WARNING: Airbag unit  .
  Danger! Immobilization period-threatening injuries!

  • Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
  • Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
  • For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS

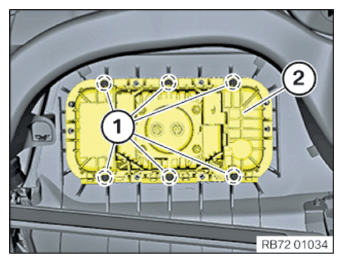

• Case 1: Front passenger airbag is attached with 6 screws  .
• Loosen screws (1).
• Remove front passenger airbag (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

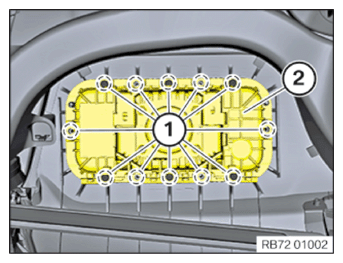

• Case 2: Front passenger airbag is attached with 12 screws  .
• Loosen screws (1).
• Remove front passenger airbag (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

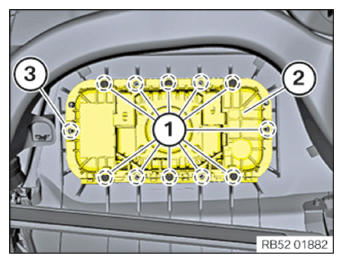

• Case 3: Front passenger airbag is attached with 11 screws  .
  NOTE: TECHNICAL INFORMATION
  The marked screw point 3  serves as an example for the unused  screw point.
• Identify the unused screw point (3) on the instrument panel.

  Screw point (3) must not be reused during installation, see "Installing the front passenger airbag".

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Remove front passenger airbag (2).

  Removing the glove compartment (dashboard removed)

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

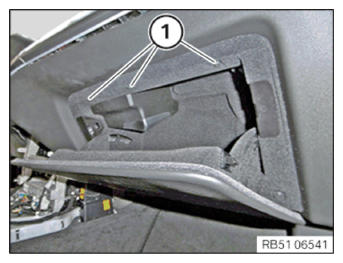

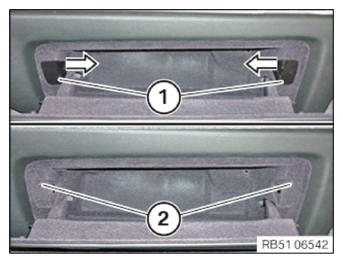

• Release the covers (1) from the glove compartment in arrow direction with the special tool 0 493 681 (64 1 020) .
• Loosen screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

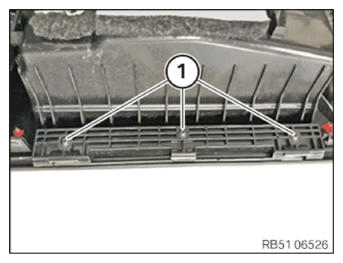

• Release the screws (1) from the rear on the hinge of the glove compartment.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slightly lift the glove box lid (1) as shown and release the screws (2).
• Carefully feed out the glove compartment from the dashboard, and while doing so, unlock and disconnect all the plug connections.

  Courtesy of BMW OF NORTH AMERICA, INC.

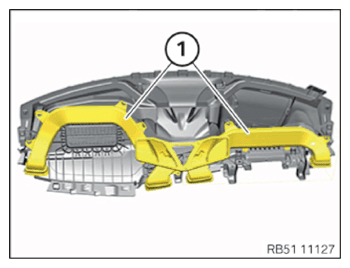

• Remove the air ducts (1).
• Replace the trim panel for the instrument panel.

  Parts:  Dashboard trim

• Install air ducts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount any existing cables on the new dashboard trim.
• If necessary, remount the sticker for the vehicle identification number on the new dashboard trim  .

  Installing the glove compartment (dashboard removed)

• Guide the glove compartment into the dashboard and also connect and lock all plugs.
• Slightly raise the glove box lid (1) as shown and tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Glove compartment to dashboard
  screw
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

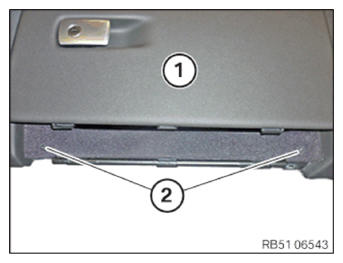

• Tighten the screws (1) from behind on the hinge of the glove compartment.
  TIGHTENING TORQUE SPECIFICATIONS



  Glove compartment to dashboard
  screw
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Glove compartment to dashboard
  screw
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

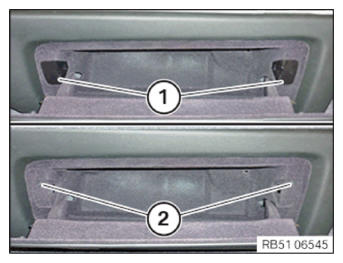

• Installing covers (1) on the glove compartment.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Glove compartment to dashboard
  screw
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the front passenger airbag

  WARNING: Airbag unit  .
  Danger! Immobilization period-threatening injuries!

  • Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
  • Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
  • For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS
  WARNING: Pyrotechnic components  .
  Danger! Immobilization period-threatening injuries!

  • All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
  • Replace any damaged part or ones that have been dropped.
  • For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
  NOTE: TECHNICAL INFORMATION
  The screw connection of the front passenger airbag to the instrument panel depends on whether the removed parts or new parts are installed. Note the following case distinction.
• Variant A (installation of the removed front passenger airbag on a new instrument panel)

  Position passenger airbag (2).

  Fasten the front passenger airbag (2) with screws 12  .

  Tighten the screws (1).

  A retorque of the screws using the torque wrench is not permitted!

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Front passenger airbag to dashboard
  Oval-head screw for thermoplastic
  	Tightening torque	2.5 Nm

• The tightening torque must be applied on at least 11  screws.
• The one screw for which the tightening torque cannot be reached must be removed  .
• If the tightening torque is not reached for more than one screw, the instrument panel must be replaced.
• Variant B (installation of a new front passenger airbag on the removed instrument panel)

  The removed front passenger airbag was fastened with 6 screws  .

• Position passenger airbag (2).
• Fasten the front passenger airbag (2) with screws 12  .
• Tighten the screws (1).

  A retorque of the screws using the torque wrench is not permitted!

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Front passenger airbag to dashboard
  Oval-head screw for thermoplastic
  	Tightening torque	2.5 Nm

• The tightening torque must be applied on at least 11  screws.
• If the tightening torque is not reached for more than one screw, the instrument panel must be replaced.
• Variant C (installation of a new front passenger airbag on the removed instrument panel)

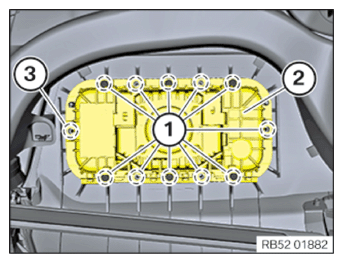

  The removed front passenger airbag was fastened with 11 screws  .

  Position passenger airbag (2).

  NOTE: TECHNICAL INFORMATION
  The marked screw point 3  serves as an example for the unused  screw point.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Do not  use the marked screw point (3) when removing the front passenger airbag.

  Fasten the front passenger airbag (2) with 1  1 screws at the same screw points already used  .

• Tighten down screws (1).

  A retorque of the screws using the torque wrench is not permitted!

  TIGHTENING TORQUE SPECIFICATIONS



  Front passenger airbag to dashboard
  Oval-head screw for thermoplastic
  	Tightening torque	2.5 Nm

• Make sure that the tightening torque is reached in all 11  screws.
• If the tightening torque is not reached for a screw, the instrument panel must be replaced.

  Check

  NOTE: TECHNICAL INFORMATION
  Although the screws were correctly tightened using the torque wrench, it is possible that the screw head is not seated without a gap. The following procedure is applicable to all present cases  .

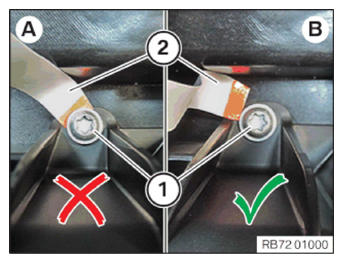

• Check if all the screw heads (1) rest without any gaps as shown (using a thin paper strip (2)).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The paper strip (2) slides under the screw head (1). The screw (1) does not rest without any gaps. The threaded connection is not  correct.

  Measure

  • Release screw (1) and tighten it once again to the same, prescribed tightening torque without retorque  .

    Increasing the tightening torque in order to seat the screw head in the correct position is not permitted!

    Repeating the threaded connection is only permitted once per screw point  .

  Result

  » The paper strip (2) does not  slide under the screw head (1). The screw (1) rests without any gaps. The threaded connection is correct.

  Measure

  • No action required.

  Result

  » The paper strip (2) passes under the screw head (1) despite one  repeated threaded connection. The screw (1) does not  rest without a gap despite one  repeated threaded connection. The threaded connection is not  correct.

  Measure

  • Replace the instrument panel.

  Installing the defrost outlet

• Feed in the defrost outlet (1) and lock on the detents.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install the speaker holder on the dashboard

• Install the speaker holder (2).
• Connect plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the speaker holder (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Dashboard
  screw
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the speaker trim at the dashboard

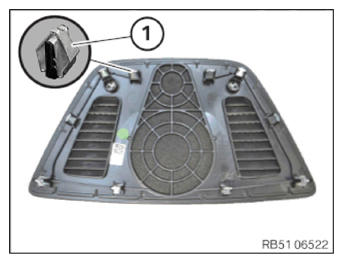

• Check the clamps (1) for damage and replace them if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the speaker trim (1) and engage it in at the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INSTRUMENT PANEL TRIM .
• Refer to INSTALLING THE GLOVE BOX LIGHT .
• Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING AUDIO CONTROL UNIT .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
• Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING RIGHT FOOTWELL TRIM  .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
