Replacing rear side trim panel upper section

Preliminary work

• Refer to REMOVING C-PILLAR TRIM PANEL .
• Refer to REMOVING THE D-PILLAR TRIM PANEL .
• Refer to REMOVING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .

• Removing the armrest on the side trim panel

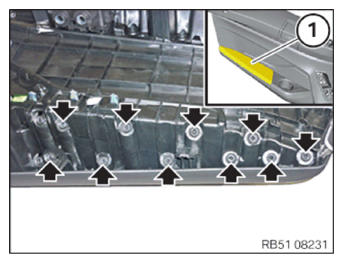

• Drill out and grind down the welded spots (arrows) carefully.
• Pull out the armrest (1) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Installing the armrest on the side trim panel
  NOTE: Description is for left component only. Procedure on the right side is identical.
• Insert the new armrest into the side trim panel.

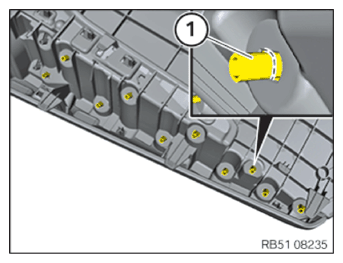

• Mark all welding pins (1) flush with the side trim panel as shown.

  Welding pins (1) must not protrude from the side trim panel  .

• Remove the armrest once more and cut out all welding pins (1) on the marks.

  Courtesy of BMW OF NORTH AMERICA, INC.

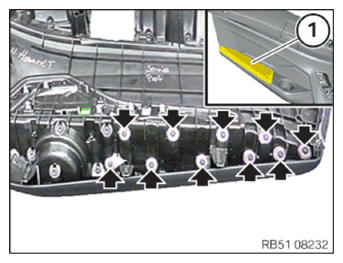

• Install the armrest (1).
• Screw in the repair screw (1) with the washers and tighten.
  TIGHTENING TORQUE SPECIFICATIONS



  Armrest on side trim panel
  Screw
  	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the side trim panel upper section.

  Parts:  Side trim panel upper section

  • Removing decorative strip on the side trim panel

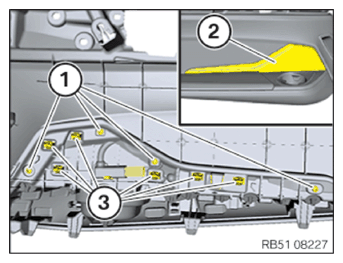

• Loosen screws (1).
• Lever out the decorative strip (2) with the special tool 2 298 505 from the clamps (3) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Installing the decorative strip on the side trim panel
• Install the decorative strip (2) and engage at the clamps (3).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Decorative strip to side trim panel
  Screw
  	tightening torque	2.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

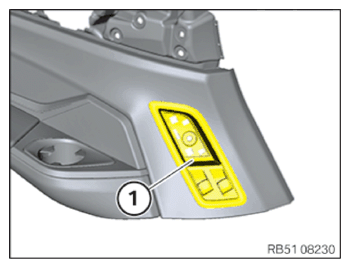

• Unclip the switch trim (1) out of the side trim panel and remount it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
