Removing windows with a "Spider" (X7 2019-2022)

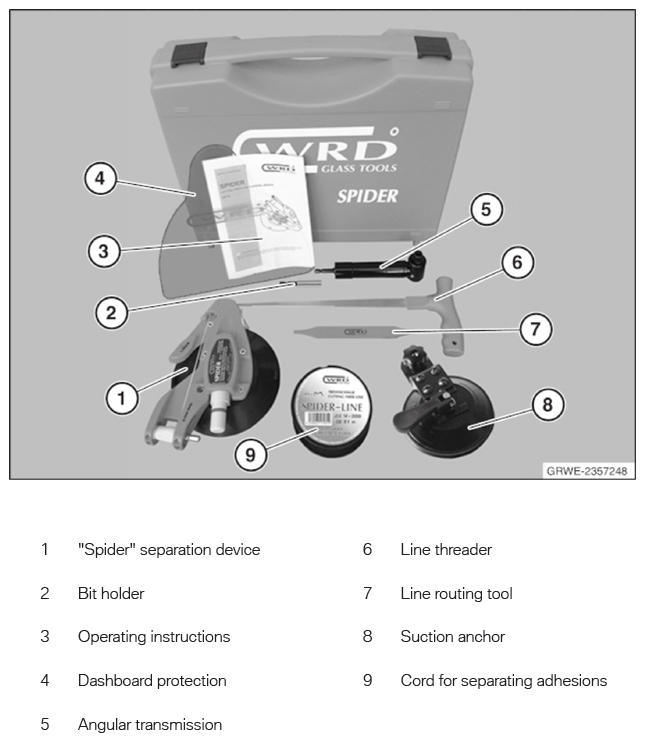

Windshield removal system "Spider"

Courtesy of VOLVO CARS CORPORATION

Accessories required for operation (not included):

Cordless screwdriver/drill with at least a 10.8 V Li-ion battery or a 18 V Ni-Cd battery and variable speed.

NOTE: Always use a low gear setting.

NOTE: Damage as well as ergonomie and health-endangering harm are minimized with the "Spider" disassembly system.

WARNING: Follow safety instructions. Refer to SAFETY INSTRUCTIONS FOR WORKING ON VEHICLES WITH AIRBAG SYSTEMS for working on vehicles with airbag systems (risk of injury).

Attention!

Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).

Attention!

Always keep both suction cups dry and clean to ensure optimum adhesion on the windshield.

Suction cup may not be applied at the damaged point (crack in window glass).

The bearing bushes of the shaft (spindle) must always be lubricated.

Always wear safety goggles and protective gloves for your own safety.

NOTE: The TRAINING VIDEO schematically shows the method for removing the windshield.

The procedure for disassembly of the windshield is described below as an example.

Deviations in the work procedure can be found in the vehicle-specific repair instructions.

General

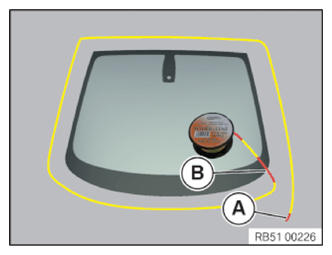

A cord approx. 6.8 m long is used to cut through the adhesive bead.

The cord length to be used is identified by a short red mark (A) approx. 5 cm.

The part of the cord laid outside around the window glass (approx. 5 m) is identified with a long red mark (B) (approx. 18 cm).

The marks are applied so that the cord has to be pulled from the inside to the outside.

Courtesy of VOLVO CARS CORPORATION

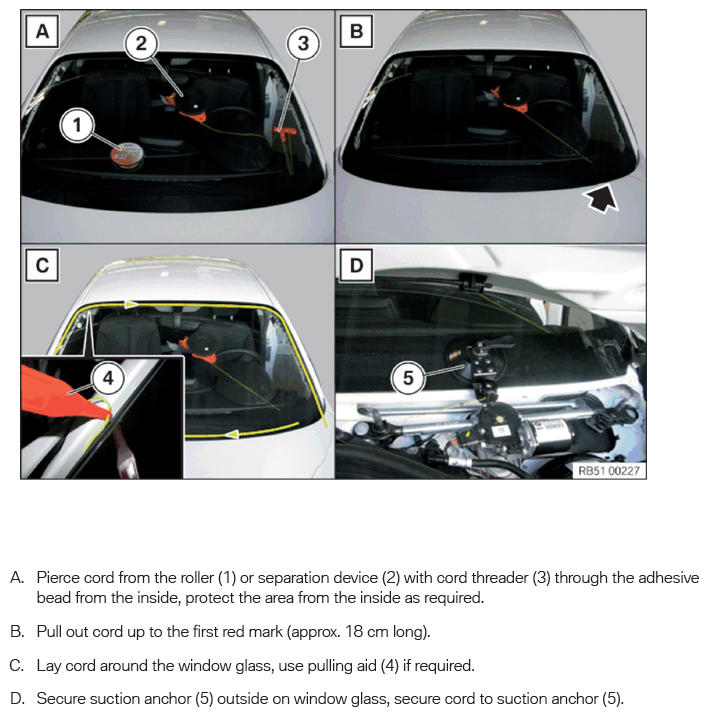

Preparation

Courtesy of VOLVO CARS CORPORATION

If required, unwind cord from roller (1) up to the second red mark (approx. 5 cm long) and cut off.

Make sure the cord lies below the window glass at all four corners.

Check that the cord is not caught on clamps or body.

Secure window glass on outside with adhesive tape against sliding.

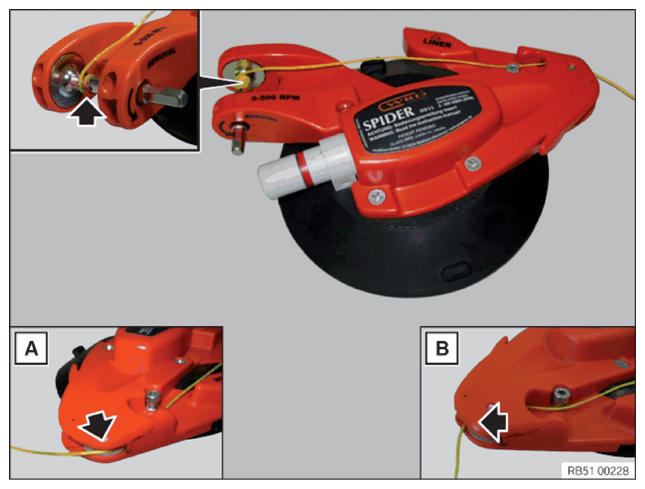

Feeding in the cord on the separation device

Courtesy of VOLVO CARS CORPORATION

Normally, the adhesive bead is cut through counter-clockwise seen from the passenger compartment.

This means the cord must be fed into the separation device as shown in graphic A.
When accessibility is not optimal, the opposite cutting direction may be required (comply with vehicle-specific repair instructions).
This means the cord must be fed into the separation device as shown in graphic B.
Feed cord into coil and wind it on, at the same time trapping the end of the cord.

When winding the cord, the correct direction of rotation on the separation device must be observed.

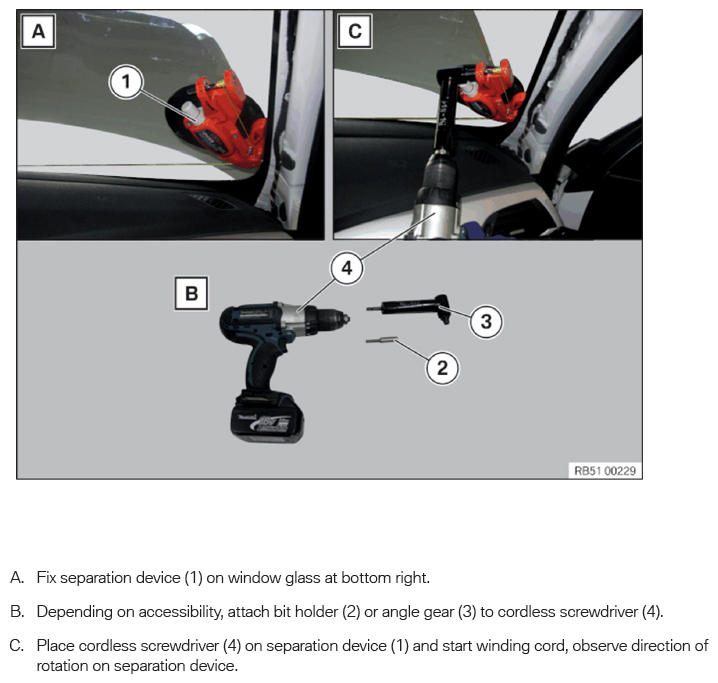

Cutting out procedure

Courtesy of VOLVO CARS CORPORATION

Optimum cutting is guaranteed when the cord is at an acute angle to the adhesive bead. There is a risk of the cord ripping if the angle is too obtuse.

The separation device must be positioned correspondingly to achieve the appropriate angle.

If required, over trim panel components with plastic protection.

Guide cord with plastic protection around sharp-edged positions.

Cut through adhesive bead up to bottom area of A-pillar.

Turn back cordless screwdriver (4) approx. 2 rotations and remove.

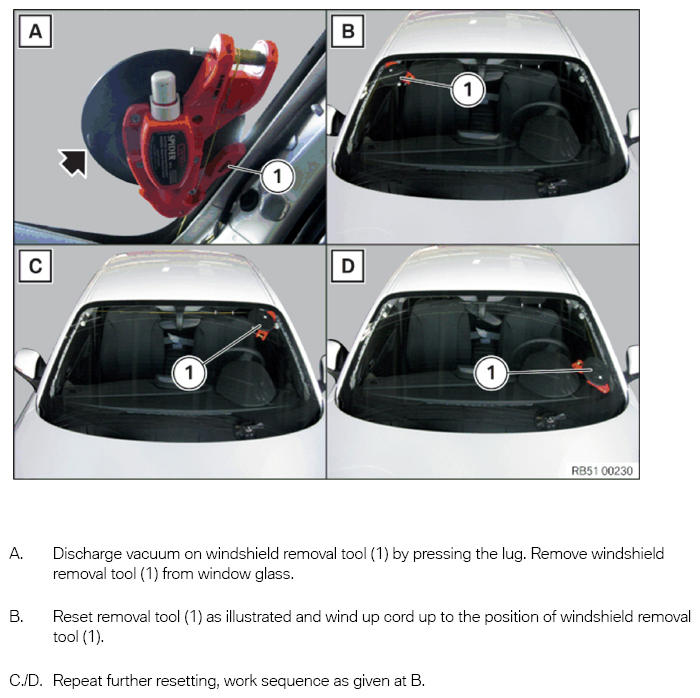

Cutting out procedure

Courtesy of VOLVO CARS CORPORATION

Additional resetting may be required for very curved window glass.

It is possible to reuse the cord. When a cord is used many times the risk of ripping increases.

Dirt contamination must be avoided when a cord is reused.
