Installing the gas pressure spring for hood

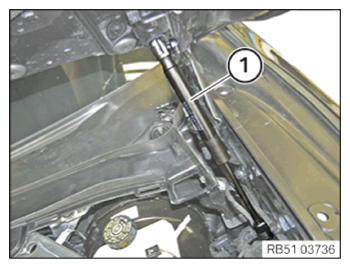

• Position gas pressure spring for hood (1) with the ball sockets on the ball hubs and snap it in with force.

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT OR RIGHT .
