Installing the front emblem

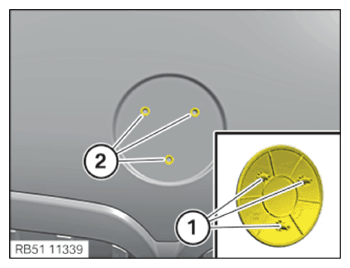

Check the guide pins (1) of the emblem for damage.
Check grommets (2) for damage and, if necessary, replace them.

Courtesy of VOLVO CARS CORPORATION
Wet the guide pins of badge (1) with the fitting lubricant.
INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412

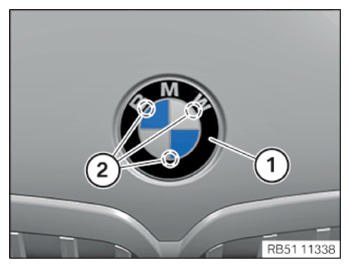

Insert badge (1) in grommets (2) and press on it all around.

Courtesy of VOLVO CARS CORPORATION
