Installing left and right retaining frame
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the retaining frame

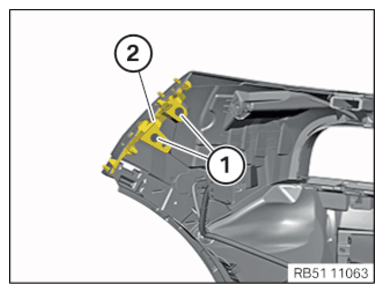

- Feed in and position holder (2)
.
- Tighten the screws (1)
.
 Courtesy of VOLVO CARS CORPORATION
|

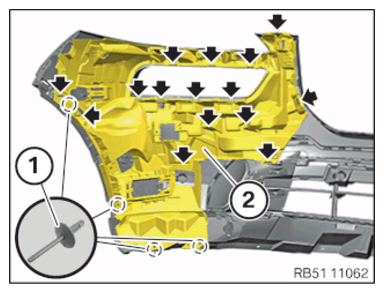

- Position and snap retaining frame (2)
into the locks (arrows).
- Fasten blind rivets (1)
.
 Courtesy of VOLVO CARS CORPORATION
|

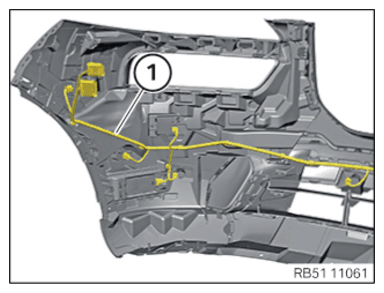

- Position and clip wiring harness (1)
into all the clips.
- Connect and lock the plug connections.
 Courtesy of VOLVO CARS CORPORATION
|
