Installing the trim on the front bumper cover

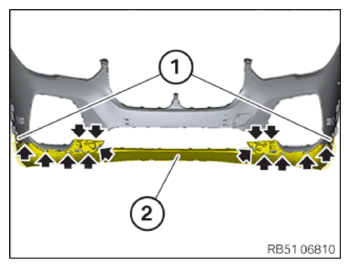

- Correctly position the front bumper cover (2) and engage at detents (arrows).
- Mount blind rivet (1) using the special tool 0 496 521 (00 2 230)
.
Follow-up work
- Refer to INSTALLING THE ORNAMENTAL GRILLE ON THE CENTER BUMPER PANEL .
- Refer to INSTALLING THE ORNAMENTAL GRILLE OF THE BUMPER PANEL ON THE LEFT AND RIGHT SIDE .
- Refer to INSTALLING THE FOG LIGHT BRACKET ON THE LEFT AND RIGHT .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
