Removing the control panel of the rear automatic climate control

Preliminary work

• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE REAR VENTILATION GRILLE .

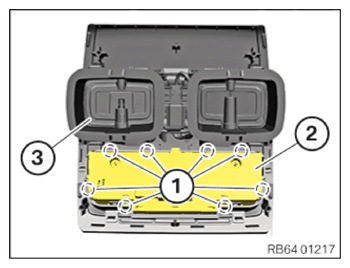

• Unlock the detents (1).
• Remove the control panel (2) of the rear passenger compartment air conditioning from the ventilation grille (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
