Installing the rear ventilation grille
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

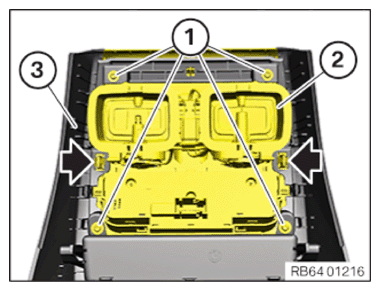

- Insert the ventilation grille for the rear (2) correctly into the rear center console trim (3).
- Engage the detents (arrows).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ventilation grille to decorative strip/instrument panel | ||
|---|---|---|
| Screw | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
