Installing the center console trim

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Check the clamps (1) for damage.
Replace broken or missing clips (1).
Check the guides (2) for damage, replace the center console trim if applicable.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in center console trim (1).
Connect respective connectors and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Correctly position center console trim (1) and engage at clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

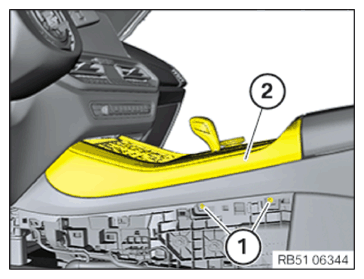

Tighten screws (1) on center console trim (2).

TIGHTENING TORQUE SPECIFICATIONS

Center console trim to center console
Oval-head screw	Tightening torque	2.4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
