Remove the left engine mount
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Car may slip off the vehicle hoist where components are supported
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
WARNING:
Heavy component falling down or tipping
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: SECURING ENGINE IN INSTALLATION POSITION .
NOTE:
TECHNICAL INFORMATION
Check and assess the engine mount in accordance with test module "Engine mount: Mechanical check". If the condition of an engine mount is faulty, for the sake of customer satisfaction, we recommend replacing both engine mounts to prevent a repeat repair.
Check and assess the engine mount in accordance with test module "Engine mount: Mechanical check". If the condition of an engine mount is faulty, for the sake of customer satisfaction, we recommend replacing both engine mounts to prevent a repeat repair.
Preliminary work
- Refer to BRINGING THE ENGINE TO THE INSTALLATION POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING STIFFENING STRUT .
- Refer to REMOVING FRONT WHEEL ARCH COVER AT THE BOTTOM LEFT AND RIGHT .
- Refer to REMOVING CRASH LEVERS LEFT AND RIGHT .
- Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to IF INSTALLED: REMOVE THE AUXILIARY HEATER .
- Refer to REMOVING THE EPS WIRING HARNESS .
- Refer to RELEASING THE WIRING HARNESS FROM THE ACTIVE STABILIZER .
- Refer to RELEASING UNIVERSAL JOINT ON STEERING GEAR .
- Refer to RELEASING THE LEFT AND RIGHT OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to DISCONNECTING THE CONNECTOR FROM VERTICAL ACCELERATION SENSOR ON THE LEFT AND RIGHT .
- Refer to RELEASING THE BRAKE HOSE AND THE CABLE ON THE LEFT AND RIGHT .
- Refer to RELEASING THE RIGHT AND LEFT SPRING STRUT HOLDER FROM THE BOTTOM WISHBONE .
- Refer to RELEASING THE BRACKET OF THE TRANSMISSION OIL COOLING .
- Refer to DISCONNECTING THE COOLANT HOSE FROM THE FRONT SUBFRAME .
- Refer to PREPARING THE MOBILE TABLE LIFT .
- Refer to POSITION THE MOBILE TABLE LIFT .
- Refer to DETACHING THE TOP LEFT AND RIGHT WISHBONE FROM THE SWIVEL BEARING .
- Refer to UNSCREWING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to LOWERING FRONT SUBFRAME .
- If installed, release the vacuum line (1) from the engine mount (2).

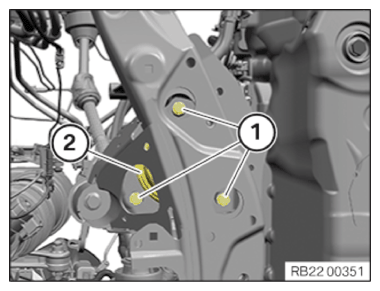

- Loosen screws (1).
- Remove engine mount (2).
