Remounting the camshaft position sensors of the intake camshaft and of the exhaust camshaft
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

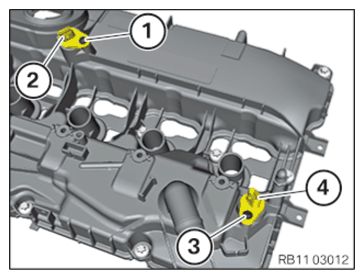

- Loosen screw (1).
- Unscrew and remove the camshaft position sensor (2) for the intake camshaft.
- Loosen screw (3).
- Guide the camshaft position sensor (4) of the exhaust camshaft out and remove.
- Check the sealing ring (1) for damage, replace it if necessary.
- Thread in and install the camshaft position sensor (2) of the intake camshaft.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft position sensor to cylinder head cover | |
|---|---|
| TS5x20 | tightening torque 4 Nm |
- Guide the camshaft position sensor (4) of the exhaust camshaft in and install.
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft position sensor to cylinder head cover | |
|---|---|
| TS5x20 | tightening torque 4 Nm |
