Installing the heat shield

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

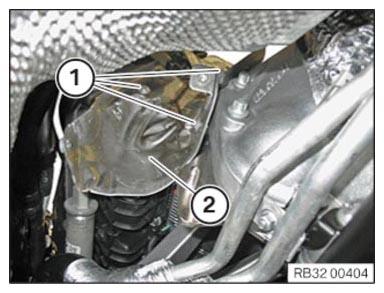

Position the heat shield (2).
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6 screw	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
