Install the cover of the engine compartment on the rear left or right
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

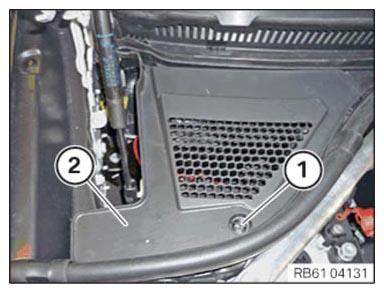

Install the cover of the engine compartment on the rear left
- Install the cover (2).
- Close lock (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Install the rear right engine compartment cover

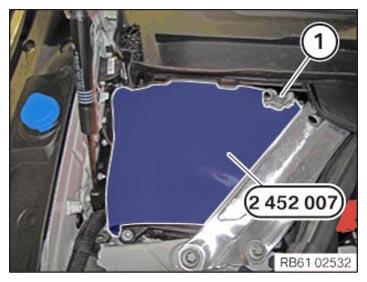

Remove the battery cover
- Raise the battery ground cable (1).
- Remove special tool 2 452 007
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the cover (2).
- Lock the lock (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
