Securing the oil sump acoustic cover

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

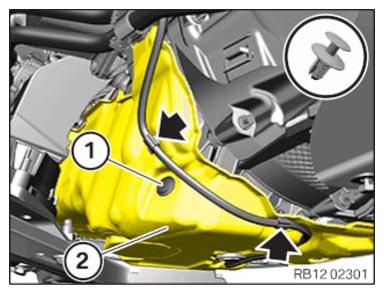

Position the acoustic cover (2).
Fasten expanding rivet (1).
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

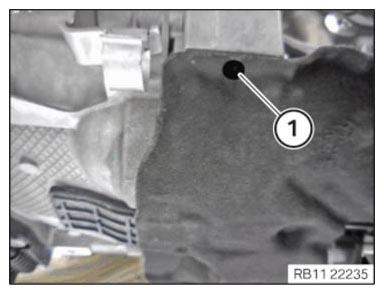

Check the christmas tree clip (1) for damage, replace if necessary.
Parts: Christmas Tree clip

Courtesy of BMW OF NORTH AMERICA, INC.

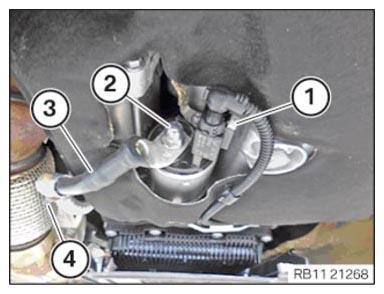

Connect and lock the connector (1).
Make sure the connector (1) engages audibly.
Insert and install the positive battery cable (3).
Secure positive battery cable (3) at the clamp (4).
Tighten the nut (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

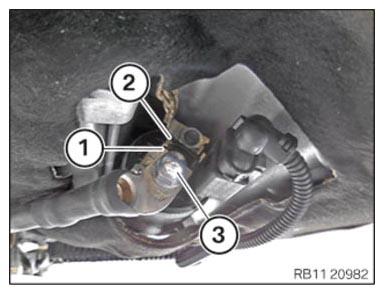

Correctly attach the positive battery cable (1) to the anti-twist lock (2).
Tighten nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Battery positive lead to starter
M8	Tightening torque 13.5 Nm
