Installing transmission cross member

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Install transmission cross-member.
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to rubber mounts
M12	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (2).
Parts: Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to body
M8	tightening torque	19 Nm

Remove the transmission jack.

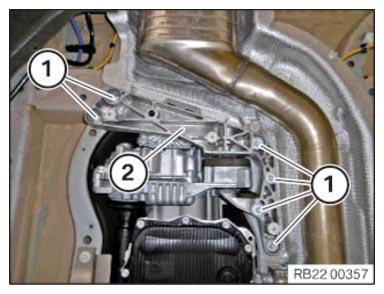

Position transmission cross member (2).

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to body
M8	tightening torque	19 Nm

Remove the transmission jack.

Courtesy of BMW OF NORTH AMERICA, INC.
