Replacing the radial shaft seals
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Replacing the left radial shaft seal
NOTE:
TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
Remove the radial shaft seal

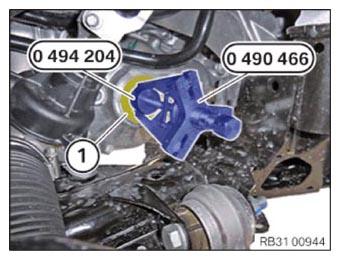

- Pull out and remove the radial shaft seal (1) with the special tools 0 490 466 (00 5 010) and 0 494 204 (24 2 353)
.
- Replace radial shaft seal (2).
Parts: Radial shaft seal

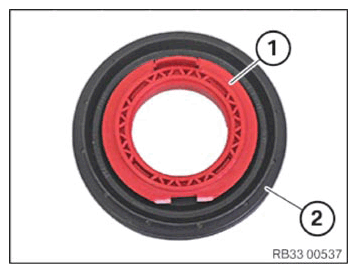

- Remove the assembly protection ring (1) from the radial shaft sealing ring (2).
Install the radial shaft seal
- Coat the housing of the sheet metal flange of the radial shaft seal with the approved front differential fluid.

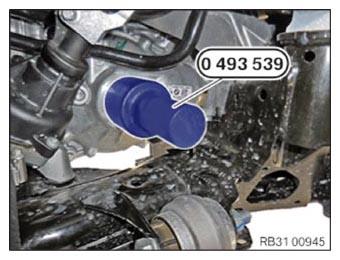

- Drive in the radial shaft seal to the stop using the special tool 0 493 539 (31 5 130).
- Remove special tool 0 493 539 (31 5 130).
- Install the installation protection ring (1) in the radial shaft seal (2).
Replacing the radial shaft seal of the bearing bracket
NOTE:
TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
Removing radial shaft seal of the bearing bracket
- Prepare the special tool 0 490 466 (00 5 010) with the special tools 0 494 649 (21 2 230)
(without the screw) and 0 493 384 (11 1 212)
.

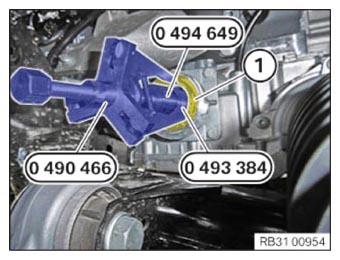

- Pull out and remove the radial shaft seal (1) with the special tools 0 490 466 (00 5 010), 0 494 649 (21 2 230)
and 0 493 384 (11 1 212).
- Replace radial shaft seal (2).
Parts: Radial shaft seal
- Remove the installation protection ring (1) from the new radial shaft seal (2).
Installing radial shaft seal of the bearing bracket
- Coat the housing of the sheet metal flange of the radial shaft seal with the approved front differential fluid.

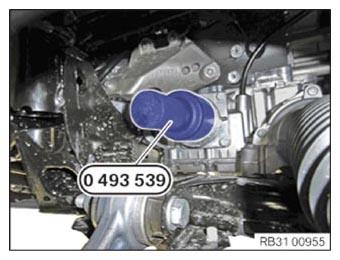

- Drive in the radial shaft seal to the stop using the special tool 0 493 539 (31 5 130).
- Remove special tool 0 493 539 (31 5 130).
- Install the installation protection ring (1) in the radial shaft seal (2).
