Fastening the prop shaft (partially removed)
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

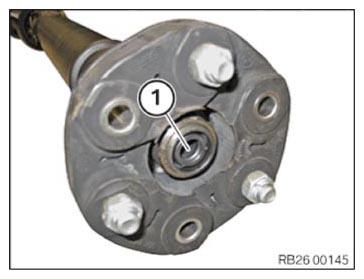

- Check centering (1) for damage; replace if necessary.

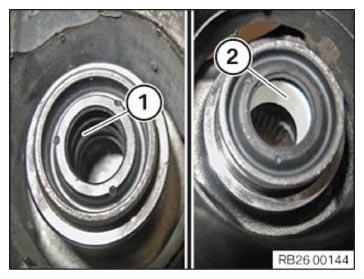

- Apply a thin coat of grease to the soft centering (1), if necessary.
Do not grease the hard centering (2).
CONSUMABLE SPECIFICATIONSLubricating grease Olistamoly 2 LN 584 LO 100 g, Tube 83 19 0 447 919 - Replace the screws and the self-locking nuts.
Parts: Screws, self-locking nuts

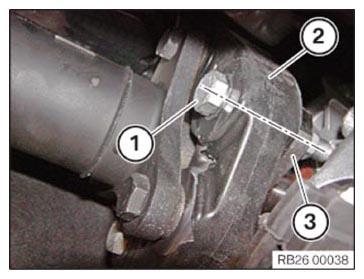

- Assemble the screw connections (1) of the flexible disc (2) and the three-hole flange (3) according to the self-affixed identification.
This should prevent a humming noise from the drive train during driving.

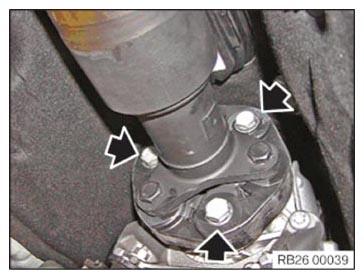

- Hand-tighten screws and nuts (arrows), but do not tighten fully.

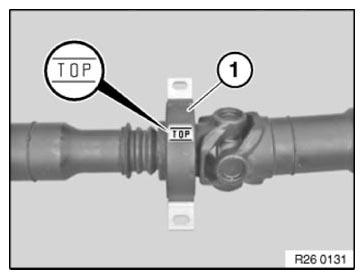

- Install central mount (1) into the transmission tunnel with the designation TOP facing upwards.
- Position central mount.

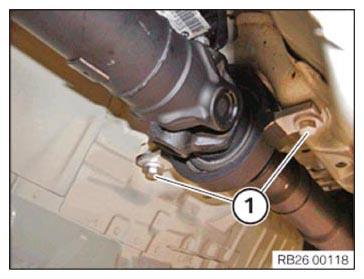

- Hand-tighten the bolts (1), but do not tighten fully.
- Replace screws.
Parts: Screws
- Counter-hold the screws of the flexible disc on the nut and tighten with the screws.TIGHTENING TORQUE SPECIFICATIONS
Front flexible disc to prop shaft M12
Replace screws.
Joining torque and angle rotation must be adhered to.
Tightening via screw.Joining torque
Angle of rotation55 Nm

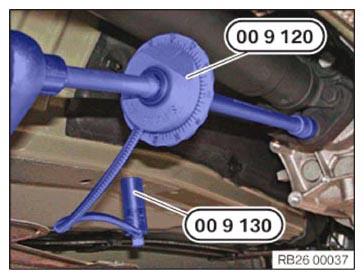

90° - Secure the special tool 0 490 504 (00 9 120) with the special tool 0 495 108 (00 9 130) on the vehicle underbody and continue to screw it in according to the angle of rotation.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Central mount to body | ||
| M8 | Tightening torque | 19 Nm |
