Install luggage compartment floor covering

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installing front luggage compartment floor trim panel

Check the clips (1) for damage and availability.
Damaged or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
Install luggage compartment floor covering (1) and engage with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the rear luggage compartment floor covering

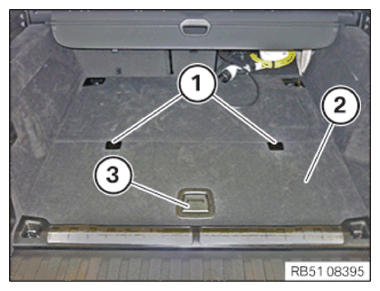

Position luggage compartment floor covering (2) correctly and lock on the handle (3).

Tighten the screws and close the covers (1).

TIGHTENING TORQUE SPECIFICATIONS

Luggage compartment floor covering on holder
Oval-head screw	Tightening torque	15 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.

Lift the luggage compartment floor covering.
Slide the clamp (1) back from the removal position (2) again.
Insert the gas pressure spring (3) onto the ball head and lock.
