Checking the VANOS adjuster of cylinder bank 1

Check

• Check the lock of intake adjuster and exhaust camshaft adjuster.

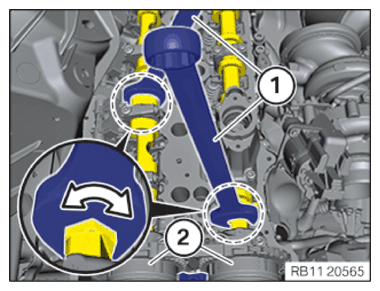

• Position the open-end wrench (1)  on the hexagon of the camshafts.
• Move the open-end wrench back and forth a little in the arrow direction.

  The camshafts must be connected with the VANOS adjusters (2)  with frictional connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Camshafts are connected to the VANOS adjusters (2)  with frictional connections.

Measure

• Continue the repair with the next step.

Result

» If there is no frictional connection, the relevant adjuster must be replaced.

Measure

• Replace the affected VANOS adjuster.

Measure

• Check timing again.
