Installing the right ventilation grille

NOTE: Description is for left component only. Procedure on the right side is identical.

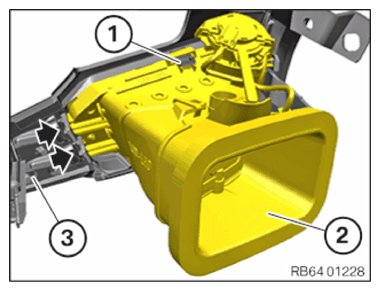

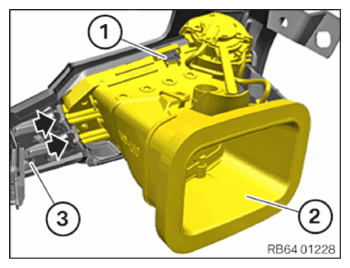

Feed the ventilation grille (2) into the guides (arrows) of the decorative strip (3) and position it correctly.
Engage detent (1) on ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

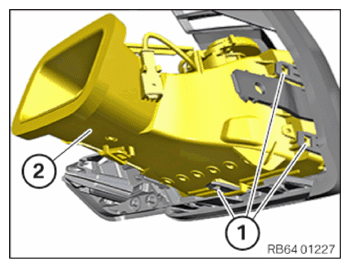

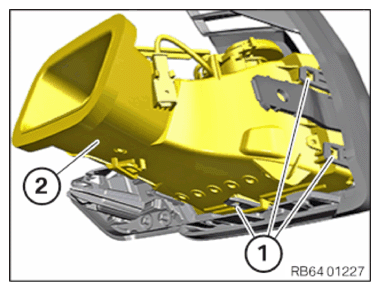

Engage the detents (1) at the ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
