Install the rear outer door handle

Install the external door handle (1) and connect and lock the connector.

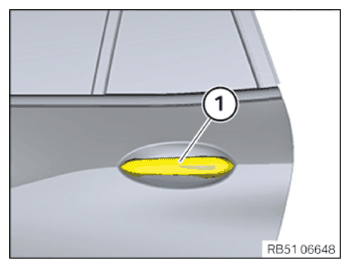

Insert the front outside door handle (1).
Insert the rear outside door handle (1).

Courtesy of VOLVO CARS CORPORATION

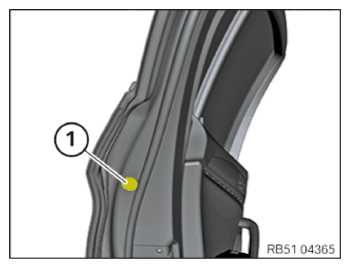

Tighten the clamping bolt (1) on the outside door handle support with the special tool 2 450 364 .

TIGHTENING TORQUE SPECIFICATIONS

Clamping bolt for door handle
screw
	Tightening torque	2 Nm

G15283925

Courtesy of VOLVO CARS CORPORATION

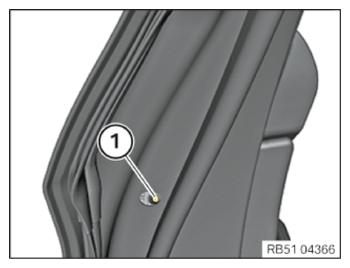

Install seal plug (1).

Courtesy of VOLVO CARS CORPORATION
