Installing the roof trim strip

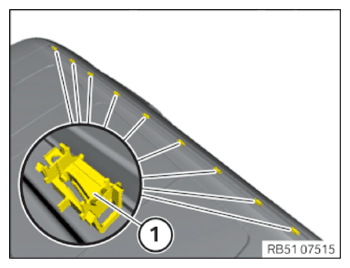

• Check clamps (1)  for damage and if available.

  Damaged or missing clamps (1)  must be replaced.

  Courtesy of VOLVO CARS CORPORATION

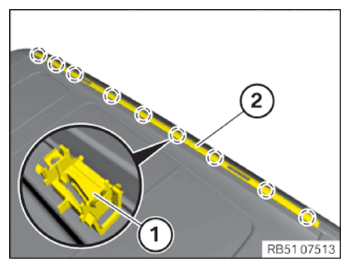

• Position the roof trim strip (2)  correctly on the roof frame.
• Engage the roof trim strip (2)  on the roof frame from the front starting at the clamps (1)  .

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE ROOF RAILS .
• Refer to INSTALLING THE HEADLINING (LOWERED) .
• Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
