Installing the wiring harness section for the sensor system of cylinders 5 to 8
- Lay the wiring harness section for the sensor system of cylinders 5 to 8 and secure with the clamps.
- Connect the plug connection (1) and lock audibly.
- Connect the connector (2)
to the exhaust turbocharger and lock it audibly.

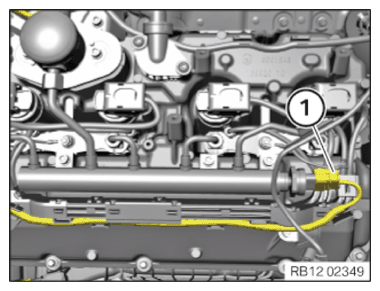

- Connect the connector (1)
to the rail pressure sensor and lock it audibly.
- Connect the connector (1) to the VANOS solenoid valve of the exhaust side and lock it audibly.
- Connect the connector (2) to the VANOS solenoid valve of the intake side and lock it audibly.
- Connect the connector (3) to the air conditioning compressor and lock it audibly.
- Connect the connector (4)
to the boost pressure sensor and lock it audibly.

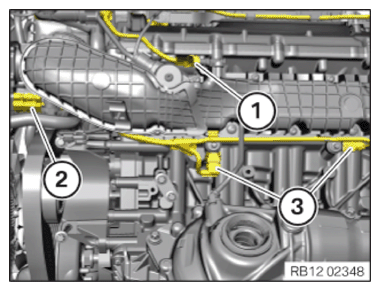

- Attach connector (1) to the boost pressure sensor and lock it audibly.
- Connect the connector (2) to the throttle valve of cylinders 5 to 8 and lock it audibly.
- Connect the connector (3)
to the knock sensors of cylinders 5 to 8 and lock it audibly.
- Attach connector (1) to the boost pressure sensor and lock it audibly.
- Connect the connector (2) to the tank vent valve and lock it audibly.
- Connect the connector (3) to the Lambda oxygen sensor and lock it audibly.
- Connect the connector (4) to the oxygen sensor monitor and lock it audibly.
- Tighten the screws (5) .
TIGHTENING TORQUES SPECIFICATION
| Cable duct to cylinder head cover/cylinder head | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |

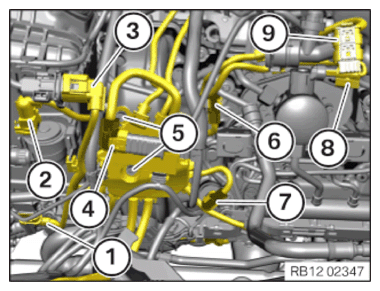

- Attach connector (6) to the camshaft position sensor and lock it audibly.
- Attach connector (7) to the camshaft position sensor and lock it audibly.
- Connect the connector (8) to the rail pressure pump and lock it audibly.
- Connect the connector (9) to the hot film air mass meter and lock it audibly.

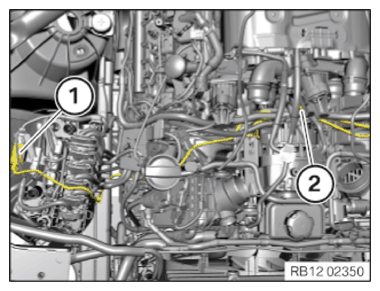

- Route the connector (1)
for the DME control unit of cylinders 5 to 8.
- Fasten all cables (1)
to the holder of the DME control unit.
- Fasten all cables (1)
to the holder of the DME control unit.
- Feed in the cover (1)
in the arrow direction at the holder (2)
and install it.

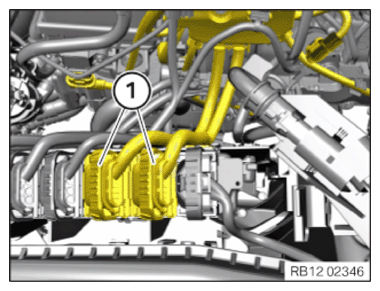

- Ensure that all locks (1) engage audibly.
Follow-up work
- Refer to INSTALLING THE LEFT INTAKE PLENUM .
- Refer to INSTALLING THE LEFT ENGINE SUPPORT BRACKET .
- Refer to INSTALLING FRONT AXLE .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to FASTENING THE SWIVEL BEARING ON THE LEFT AND RIGHT .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
- Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
- Refer to REPLACING THE RADIAL SHAFT SEALS .
- Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
- Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
- Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
- Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE WIRING HARNESS OF THE ACTIVE STABILIZER .
- Refer to FASTENING WIRING HARNESS TO THE EPS .
- Refer to IF INSTALLED: FASTENING THE AUXILIARY HEATER .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT AND RIGHT CRASH LEVER .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING THE HOLDER FOR THE DME CONTROL UNIT ON THE LEFT .
- Refer to INSTALLING THE DME CONTROL UNIT OF CYLINDERS 5 TO 8 .
- Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to TAKING ENGINE OUT OF INSTALLATION POSITION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) AT LEFT AND RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to ATTACHING THE SPRING STRUT (AIR SUSPENSION) RIGHT FRONT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING LEFT CLEAN AIR PIPE .
- Refer to INSTALLING RIGHT CLEAN AIR PIPE .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT STRUT BRACE .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
