Install the positive battery cable from the starter motor to the auxiliary terminal for jump starting
Positive battery cable from the starter motor to the remote positive terminal
Precondition
CAUTION:
Improper routing of the positive battery cable
.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

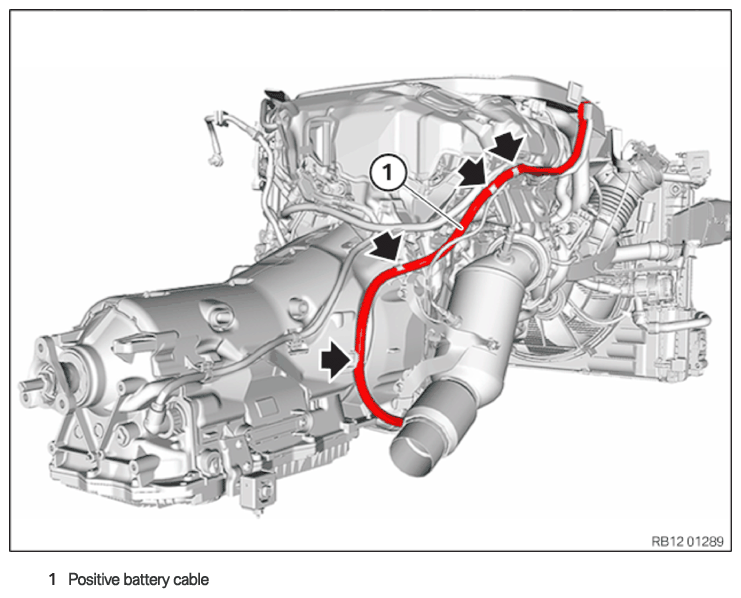

- Insert and install the positive battery cable (1) .
- Secure the clamps (arrows).
- Feed in and install the heat shield (2) .
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Heat shield to body | ||
|---|---|---|
| Nut | Tightening torque | 3 Nm |
- Connect the positive battery cable (1) to the starter motor.
- Move the positive battery cable (1) on the anti-twist lock (2) to the stop.
- Tighten nut (3) .
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.5 Nm |
- Attach the positive battery cable (1)
to the clamps (arrows).
- Insert and install the positive battery cable (2) .
- Tighten nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to battery positive terminal | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Insert and install the cover (2)
in the direction of the arrow.
The locks (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE RIGHT STRUT BRACE .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
