Remove the knock sensors on the right
Precondition
- Ignition is switched off.
NOTE:
TECHNICAL INFORMATION
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE COVER FOR THE STEERING ASSEMBLY ON THE RIGHT .
Precondition
Ignition is switched off.
The vehicle battery is disconnected.

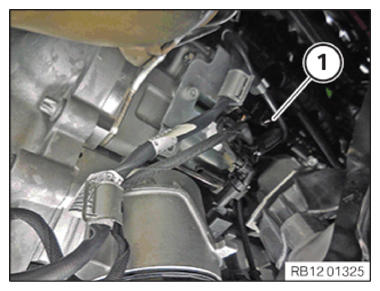

- Unlock connector (1) and disconnect it from starter motor.
- Unfasten nut (1).
- Disconnect positive battery cable from starter motor.
- Disconnect the positive battery cable from the terminal (2) and set it aside.
- Detach the clamp (1) from the intake plenum.
- Unlock connector (1) and disconnect it from the knock sensors.
- Loosen screws (3).
- Remove the knock sensors.
