Installing the knock sensor of cylinders 4 to 6
NOTE:
TECHNICAL INFORMATION
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
- Clean the contact surface of the knock sensor at the crankcase.

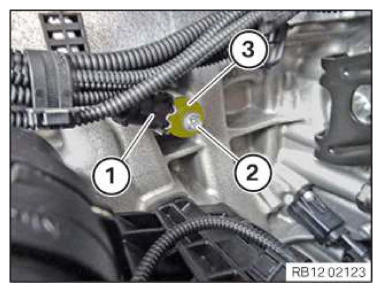

- Insert and install the knock sensor (3) .
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Knock sensor to crankcase | ||
|---|---|---|
| M8x30 | Tightening torque | 21.5 Nm |
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
