Installing the DME control unit for cylinders 1 to 4

NOTE: TECHNICAL INFORMATION
If the DDE control unit or an injector has been replaced, it will also be necessary to carry out injection quantity compensation. The adjustment value (7-character letter code/number code) for the injection quantity compensation is engraved on each injector.

NOTE: TECHNICAL INFORMATION
Follow instructions for removing and installing control units.
For additional information see: 12 00... NOTES ON REMOVAL AND INSTALLATION OF CONTROL UNITS

NOTE: TECHNICAL INFORMATION
Control unit must be programed after it is replaced.
For additional information see: 61 00... PROGRAMMING/CODING CONTROL UNIT(S)

NOTE: TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.

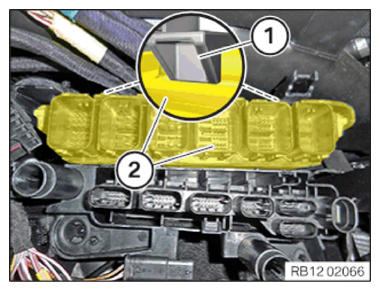

Feed in and install DME control unit (2).
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

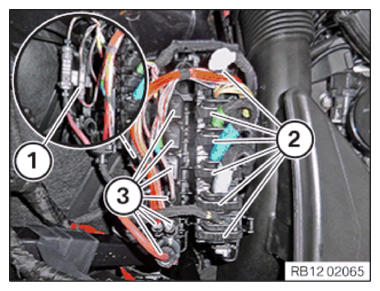

Connect connectors (3) and lock.
The connectors (3) must engage audibly.
Connect connectors (2) and lock.
The connectors (2) must engage audibly.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide cover (1) in the arrow direction and install it in holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to IF THE DME CONTROL UNIT IS REPLACED: PROGRAM/CODE DME CONTROL UNIT .
