Installing camshaft position sensor of the right intake camshaft
- Check the O-ring (1) for damage and replace if necessary.
- Coat sealing ring (1) with lubricant.

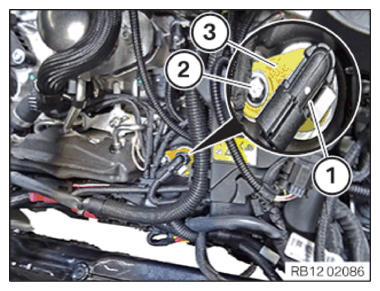

- Thread in and install the camshaft position sensor (3) of the right intake camshaft.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Camshaft position sensor to cylinder head cover | ||
|---|---|---|
| Torx screw M6 | Tightening torque | 8 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT STRUT BRACE .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING ACOUSTIC COVER .
