Installing rear interior roof light

Check

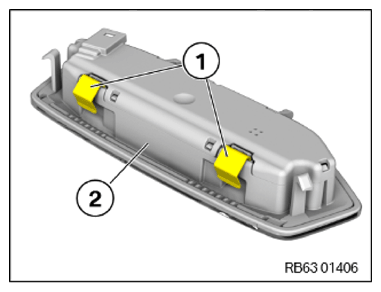

• Check the clamps (1) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Clamps (1) are damaged.

  Measure

• Replace the interior roof light (2).
• Connect associated connector.
• Engage the interior roof light (1) on the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
