Installing tail light onto side panel at right

• Check the seal (1) on the tail light (2) for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

  NOTE: TECHNICAL INFORMATION
  The thread is a left-hand thread.
• Check whether both adjusting elements (1) on the tail light (2) are in the screwed-in position.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The adjusting elements (1) are not in the screwed-in position.

  Measure

• Screw in adjusting elements (1) counterclockwise.
• Connect the connector (1) to the tail light (2).

  The connector must engage audibly.

• Lock the lock (3) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position rear light (1) on the side panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

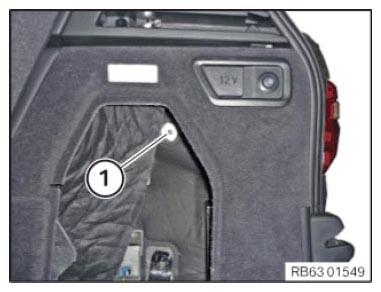

• Prescrew the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position rear light (1) to the front (arrow).
• Move the contact surfaces (2) of the rear light (1) upwards (arrow) to contact.
• Hold the tail light (1) in position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light to side panel
  Nut	tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Align the rear light (1) to the connection line (2).
• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light to side panel
  Screw	tightening torque	3.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cover (1) of the water channel and clip it in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
