Installing headlight repair kit

Precondition

• Headlight removed
  NOTE: TECHNICAL INFORMATION
  Use the repair kit to replace damaged holders. The replacement of the headlamp is not required  .
  NOTE: Description is for right component only. The procedure on the left side is identical.

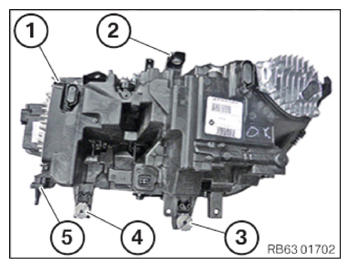

• The repair kit for headlight can be used for the holders (1) and (2) and (3) and (4) and (5).

  Courtesy of BMW OF NORTH AMERICA, INC.

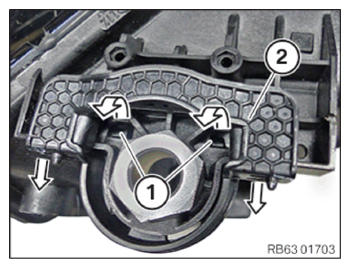

• Unlock the detents (1) in arrow direction and remove the part (2).

  The part (2) is no longer required.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screw sleeve (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

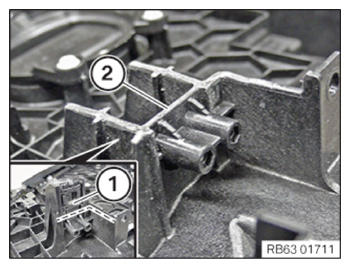

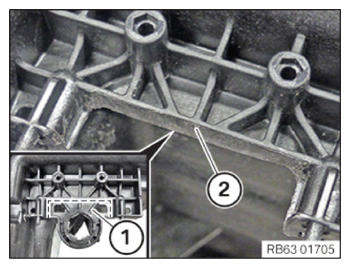

• If applicable, remove the damaged holder (1) along the dotted line as shown (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

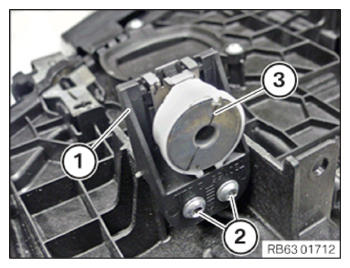

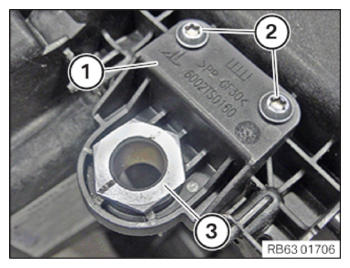

• Attach the new holder (1) with the included screws (2). Remount the screw sleeve (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

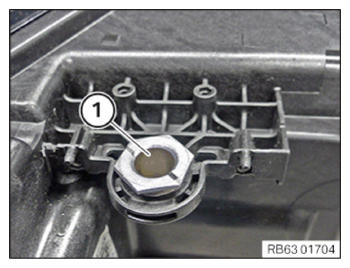

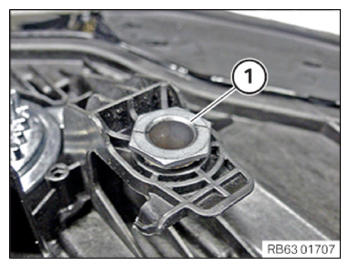

• Release the screw sleeve (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

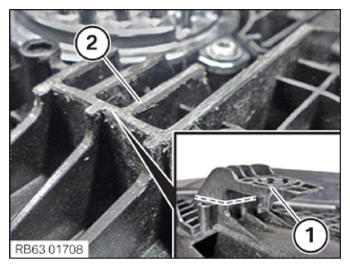

• If applicable, remove the damaged holder (1) along the dotted line as shown (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

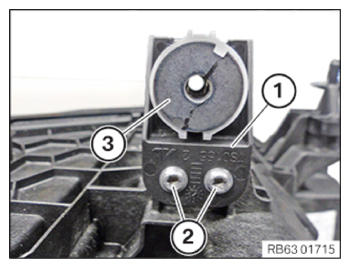

• Attach the new holder (1) with the included screws (2).
• Remount the screw sleeve (3) on the new holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

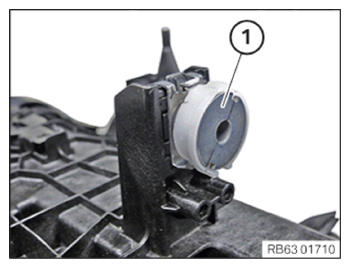

• Disassemble the adjusting element (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

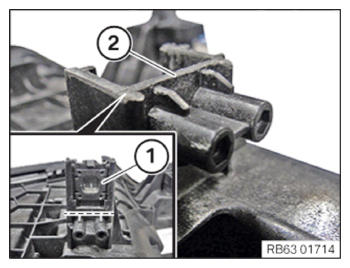

• If applicable, remove the damaged holder (1) along the dotted line as shown (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

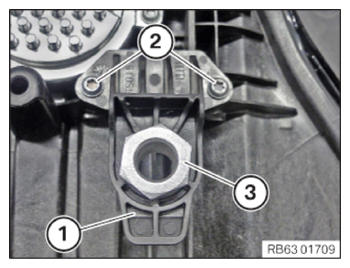

• Attach the new holder (1) with the included screws (2).
• Remount the adjusting element (3) on the new holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disassemble the adjusting element (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• If applicable, remove the damaged holder (1) along the dotted line as shown (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the new holder (1) with the included screws (2).
• Remount the adjusting element (3) on the new holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Read the position of the holder (1) on the scale (2) and note.
  NOTE: Use the center point of the screw hole to determine the scale value.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screw (1) and remove the malfunctioning holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the new holder (1) at the previously noted scale position and attach with the included screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
