Installing loading edge trim

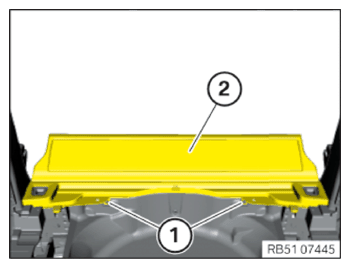

• Feed the loading edge trim (2)  at rear into the guides and correctly position.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Loading edge trim to body
  Screw
  	tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RIGHT STORAGE COMPARTMENT .
• Refer to INSTALLING LEFT STORAGE COMPARTMENT .
• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
