Check the expanding foam tape on the windshield

Check

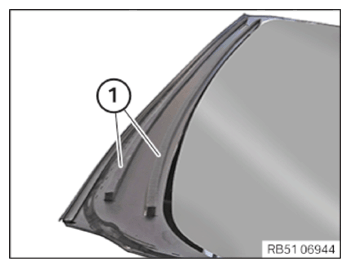

• Check expanding foam tape (1) for damage.

Courtesy of VOLVO CARS CORPORATION

Result

» Expanding foam tape (1) is damaged.

Measure

• Replace the expanding foam tape (1).

  Parts:  Expanding foam tape

Replacing the expanding foam tapes on the windshield

Removing the expanding foam tapes on the windshield

• Release expanding foam tapes (1)  from the windshield.

  Courtesy of VOLVO CARS CORPORATION

• Replace expanding foam tape.

  Parts:  Expanding foam tape

  Installing expanding foam tape on the windshield

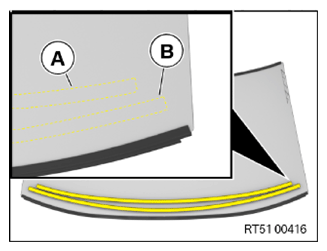

• Observe marks (A) and (B) for the expanding foam tape on the windshield.
• If marks are missing, take the dimensions from the removed windshield.

  Courtesy of VOLVO CARS CORPORATION

• Clean the adhesive areas of the expanding foam tape (1) on the windshield.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply the expanding foam tape (1) within the marks on the windshield and press it on.

  Parts:  Expanding foam tape

  Courtesy of VOLVO CARS CORPORATION
