Remove Soft-close motor

Preliminary work

• Refer to REMOVING C-PILLAR TRIM PANEL .
• Refer to REMOVING THE D-PILLAR TRIM PANEL .
• Refer to REMOVING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to REMOVING THE FLAP FROM THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT .
• Refer to REMOVING THE LUGGAGE COMPARTMENT TRIM PANEL FROM THE SIDE PANEL .
• Refer to REMOVING LUGGAGE COMPARTMENT WELL .
• Refer to REMOVING STORAGE COMPARTMENT AT LEFT .

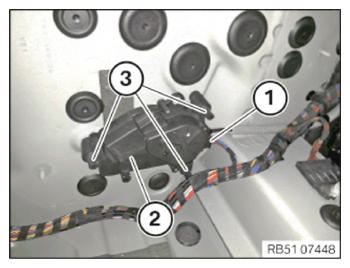

• Disconnect the connector (1).
• Lever out soft-close automatic (2) from the holders (3).

  Courtesy of VOLVO CARS CORPORATION

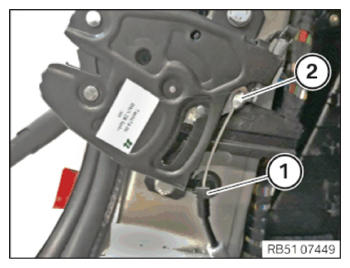

• Detach counter support (1) at the trunk lid lock.
• Twist cable linkage (2) slightly and detach at trunk lid lock.
• Remove the Bowden cable (1), together with the soft-close motor, from the vehicle.

  Courtesy of VOLVO CARS CORPORATION
