Install soft-close motor automatic function

Check

• Check the retaining lug (1) on the Bowden cable (2).

  Courtesy of VOLVO CARS CORPORATION

  Result

  » The retaining lug (1) is damaged or is not present.

  Measure

  • Replace the Bowden cable (2).

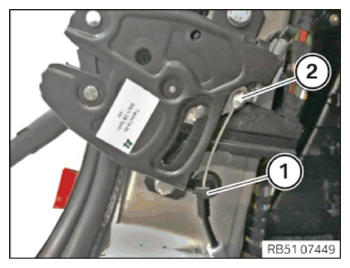

• Insert the Bowden cable (1) together with the soft-close motor into the vehicle.
• Attach the cable linkage (2) to the trunk lid lock.
• Clip in the counter support (1) at the trunk lid lock and lock it in place correctly.

  Courtesy of VOLVO CARS CORPORATION

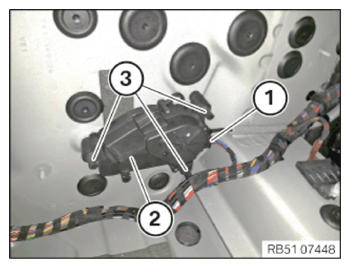

• Clip the soft-close automatic function for doors (2) into the holders (3).
• Connect connector (1).

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING LEFT STORAGE COMPARTMENT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WELL .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
