Install trunk lid lock left or right

Check

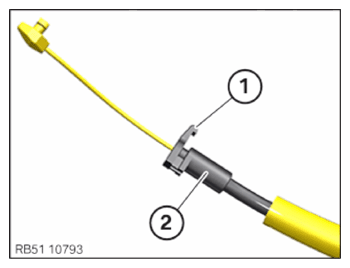

• Check the retaining lug (1) on the Bowden cable (2).

Courtesy of VOLVO CARS CORPORATION

Result

» The retaining lug (1) is damaged or is not present.

Measure

• Replace the Bowden cable (2).

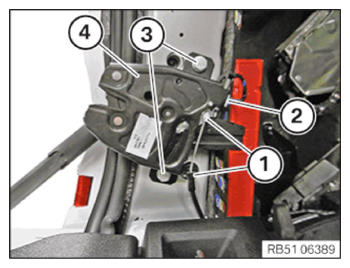

• Install the tailgate lock (4).
• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Trunk lid lock
  Screw
  	tightening torque	19 Nm

  Courtesy of VOLVO CARS CORPORATION

• Connect connector (2).
• Hook the Bowden cable (1) and lock it in place correctly.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
