Adjust the striker for lower section of tailgate left or right

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS

NOTE: Description is for left component only. Procedure on the right side is identical.

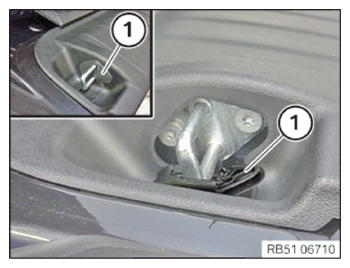

Release the rubber cover (1) and fold down as shown.

Courtesy of VOLVO CARS CORPORATION

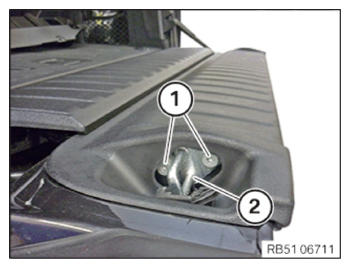

Slacken the bolts (1) until the striker (2) is barely adjustable and self-centers itself.
Close trunk lid.
Open trunk lid.

Tighten the screws (1).

NOTE: When the trunk lid is closed, the striker must not tap or scrape against the tailgate lock.
Watch out for scratches!

Courtesy of VOLVO CARS CORPORATION

TIGHTENING TORQUE SPECIFICATIONS

Striker to rear lid
screw
	Tightening torque	19 Nm

Close the trunk lid and check the gap dimension. If applicable, repeat the adjustment procedure.
