Adjusting the striker for the tailgate latch

Preliminary work

Refer to REMOVING THE COVER ON THE STRIKER FOR THE TAILGATE LATCH .

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY GAP DIMENSIONS

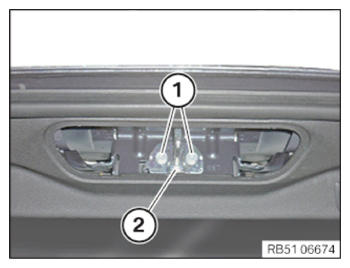

Slacken the bolts (1) until the striker (2) is barely adjustable and self-centers itself.
Close trunk lid.
Open trunk lid.

Tighten the screws (1).

NOTE: When the trunk lid is closed, the striker must not tap or scrape against the tailgate lock.
Watch out for scratches!

TIGHTENING TORQUE SPECIFICATIONS

Striker to rear lid
screw
	Tightening torque	19 Nm

Courtesy of VOLVO CARS CORPORATION

Close the trunk lid and check the gap dimension.
If applicable, repeat the adjustment procedure.

Follow-up work

Refer to INSTALLING THE COVER ON THE STRIKER FOR THE TAILGATE LATCH .
