Removing the right hood lock

Preliminary work

• Refer to REMOVING THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .

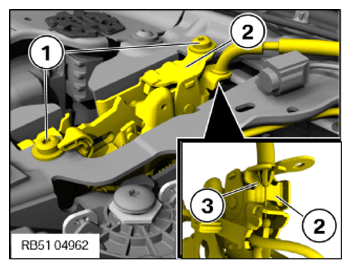

• Loosen screws (1).
• Feed out hood lock (2) in an upward direction.
• Detach cable (3) and remove the hood lock (2).
