Installing the right hood lock

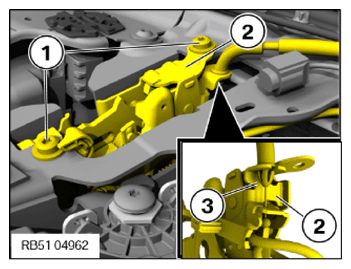

• Hook the cable linkage (3) into the hood lock (2).
• Feed in the hood lock (2).
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Hood lock
  Oval-head screw Replace screws
  	Tightening torque	8 Nm

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
