51 23 Hood Latch, Locks
>>
51 23 004 Adjusting engine compartment lid catch (X7 2019-2022)
>>
Adjust the striker on the hood
Adjust the striker on the hood
NOTE:
Perform the steps on the left and right side.

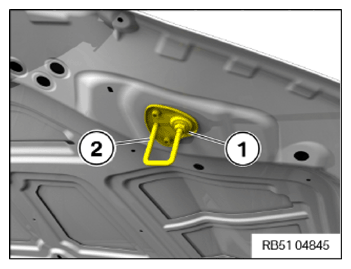

Adjust striker (2) by turning nut (1).
Courtesy of VOLVO CARS CORPORATION
